Electromagnetic brake and magnetic powder clutch big difference, what are the differences?It may be confusing for many people who are new to the product business. First of all, we need to understand that magnetic powder clutch is a kind of electromagnetic clutch.

The difference between electromagnetic brake and magnetic powder clutch is as follows:

I. Definition differences:

1. Electromagnetic brake: it is a connector that transmits the active side torque to the passive side. It can freely combine, cut off and brake according to the need.It is mainly composed of wire seat, iron plate, aluminum alloy guide seat, etc.Using electromagnet principle, the separation and braking of power drive are controlled by direct current.

2. Magnetic powder clutch: The torque is transmitted by the principle that the magnetic powder and the working surface, the friction between the magnetic powder and the magnetic powder and the shearing force generated between the magnetic powder chains are transmitted; the input shaft (active rotor) and the output are mainly output. A relatively rotatable integral of the shaft (driven rotor), alloy magnetic powder, and yoke with excitation coils.

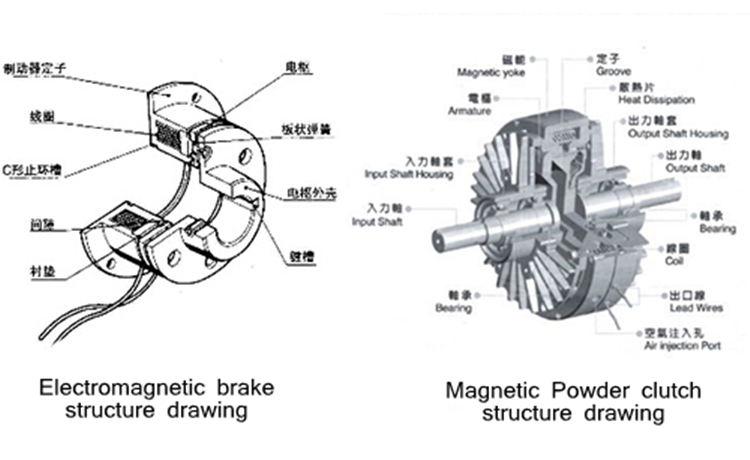

Ⅱ, Structural differences:

Ⅲ, Differences in principle:

1, Electromagnetic brake: as a result of the power-on type and power-off type, here is not written out details, small make up before have to share with you, if there is not clear can click "electromagnetic brake working principle" view.

2, Magnetic powder clutch: when the excitation winding flux produced work after electrify yoke, while the inside of the alloy magnetic powder can form the chain of magnetic powder in the working chamber (magnetic powder after the power supply will work along the direction of the magnetic flux is chain link), it is through after electrify magnetic powder and magnetic powder clutch working face, magnetic powder, and can produce the friction between the magnetic powder and magnetic powder on the principle of the chain between the resistance to shear transfer torque.

Note: the dual - shaft clutch is used only for rewinding, while the brake is usually single - shaft for unwinding.Of course, the clutch also includes a hollow shaft.About electromagnetic brake and magnetic powder clutch difference. If you have more questions or related needs can online consultation !!!
