This clutch product is designed by professional engineers with many years of experiences, and production using CNC boring and finishing machines,and be proved good in all using. We use the finest materials available for magnetic components to yield high friction indexes, as well as premium nonasbestos linings to improve response time and extend working life. We will be reliable clutch supplier for you.
It is compatible with overall general industrial machinery and the rational design offers good performance.

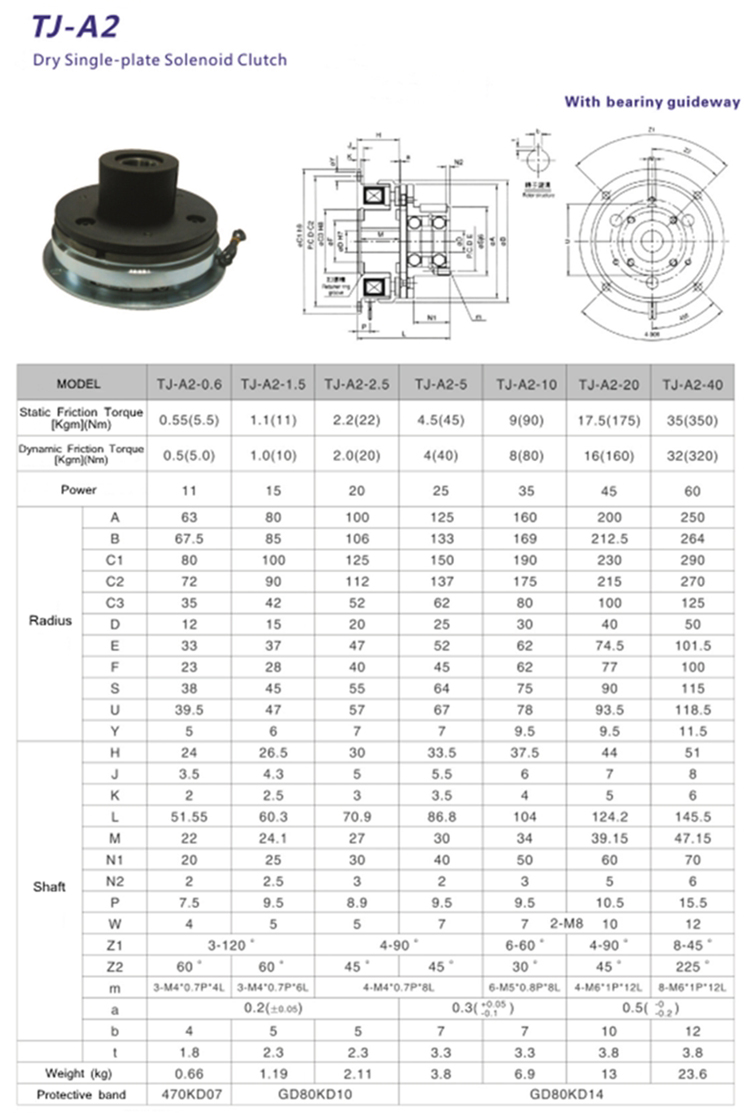

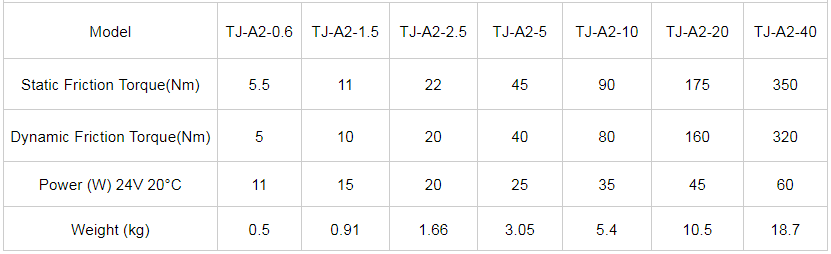

Conventional lathe machine clutch Parameter TJ-A2:
TJ-A2 series of electromagnetic clutch system without slip ring dry, electricity-work, non-rotating coil, a vice-friction, compact, torque delivery, rapid response, no load loss. Apply high-frequency mechanical action of the drive system can be part of the initiative to make the operation of the driven part of the initiative and part of the on-off, fixed-inch, speed, is a reversal, overload protection, the realization of torque transmission and control campaigns such as the role. Widely applied to machine tools, textile, printing and dyeing, paper making, packaging, construction, shipbuilding, light industrial and office machinery, such as in transmission.
Conventional lathe machine clutch Details:
Special features: 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications. |
More related products:
| TJ-A electromagnetic clutch | TJ-B electromagnetic brake |
 |  |
Order Details
FAQ
1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmisson parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.
5.What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
More concerned for our products , please do not hesitate to inquiry now!
