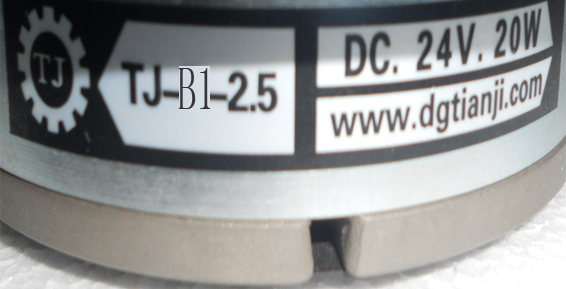

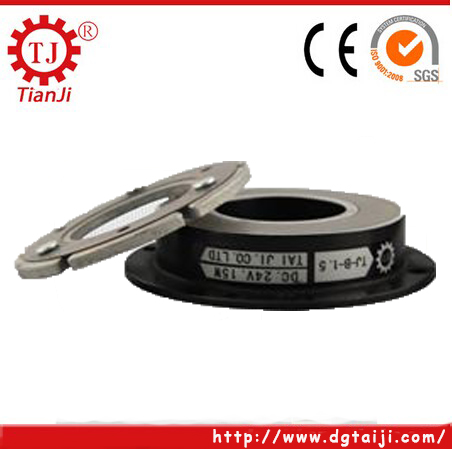

Products Detail DC 24V electromagnetic brake magnetic brake
Brief introduction
Electric brakes (also called electromechanical brakes or EM brakes) slow or stop motion using electromagnetic force to
apply mechanical resistance (friction). The original name was "electromechanical brakes" but over the years the name
changed to "electromagnetic brakes", referring to their actuation method. Since becoming popular in the mid20th century
especially in trains and trolleys, the variety of applications and brake designs has increased dramatically, but the basic
operation remains the same.Both electromagnetic brakes and eddy current brakes use electromagnetic force but
electromagnetic brakes ultimately depend on friction and eddy current brakes use magnetic force directly.
Brake Parameter
| |||||||
| MODEL | TJ-B1-0.6 | TJ-B1-1.5 | TJ-B1-2.5 | TJ-B1-5 | TJ-B1-10 | TJ-B1-20 | TJ-B1-40 |
| Static Friction Torque(Nm) | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 |
| Dynamic Friction Torque(Nm) | 5 | 10 | 20 | 40 | 80 | 160 | 320 |
| Power (W) 24V at 20°C | 11 | 15 | 20 | 25 | 35 | 45 | 60 |
| Weight (kg) | 0.32 | 0.58 | 1.07 | 1.97 | 3.45 | 7.1 | 12.2 |
 | |||||||

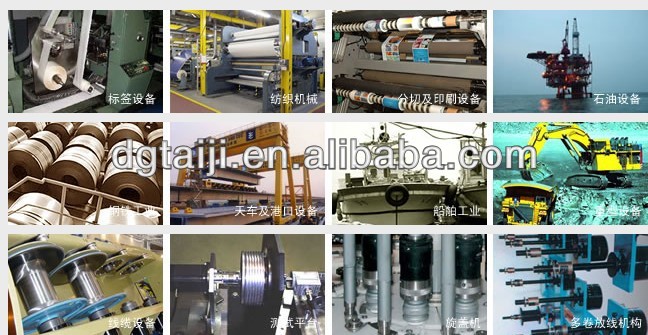

Brake Application
Main application 1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery. 2. Textile machinery: fiber twisters, treatment machines, weaving machines. 3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines 4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery. 5. Transportation equipment: hoists, feeders, conveyors, rollers, winders. 6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines. |

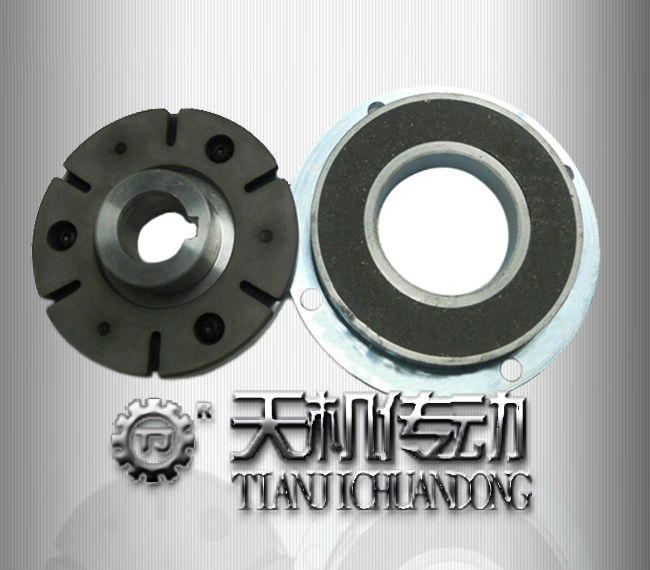

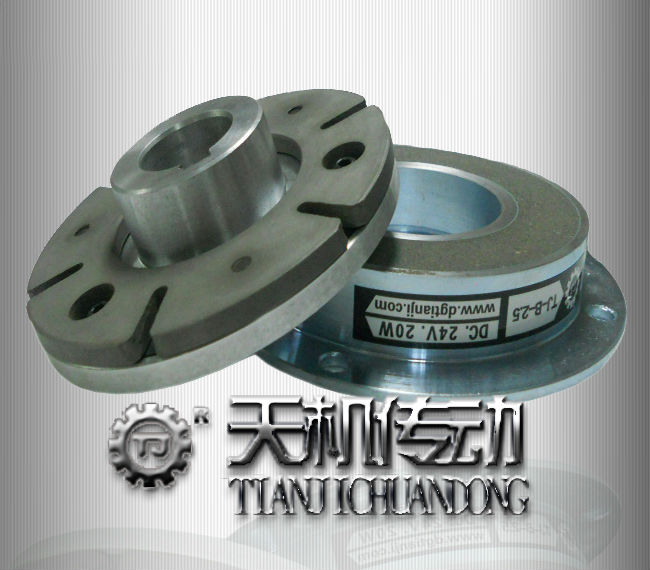

Brake Detail
Special features 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications. THIS type is not your cup of tea? That's all right.
Beside this model,we also have various of types you can choose.
So,please feel free to contact us,if you need any other models.
|
