| FOB Price: | US $20 - 250 / Unit |
|---|---|
| Min.Order Quantity: | 1 Unit/Units For fiber twisters electromagnetic tooth brake |
| Supply Ability: | 5000 Unit/Units per Month For fiber twisters electromagnetic tooth brake |
| Port: | shenzhen |
| Payment Terms: | L/C,T/T,Western Union |
Products DetailPlace of Origin: Guangdong, China (Mainland)
Brand Name: Tianji
Model Number: TJ-B
Model: TJ-B
Voltage: DC24v
Power: 35w
Static friction torque: 90Nm
Dynamic friction torque: 80Nm
Frequency: 60-100 times/min
Use: Material handling equipments/Food-processing industries
weight: 3.45kg
color: black sliver
item: electromagnetic tooth brake
| Packaging Details: | carton box or according to customers' requirement |
|---|---|
| Delivery Detail: | within 15 days after receive deposit |

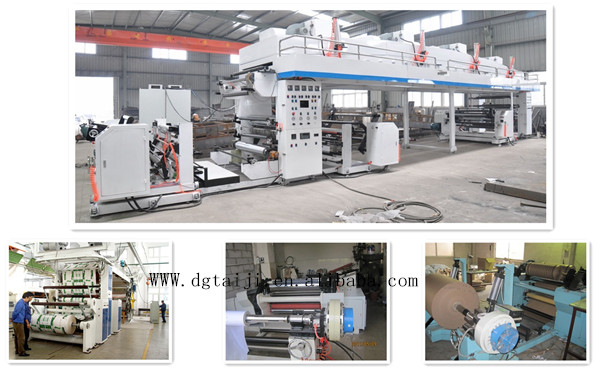

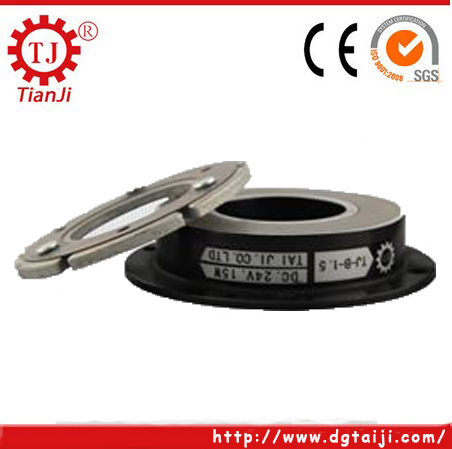

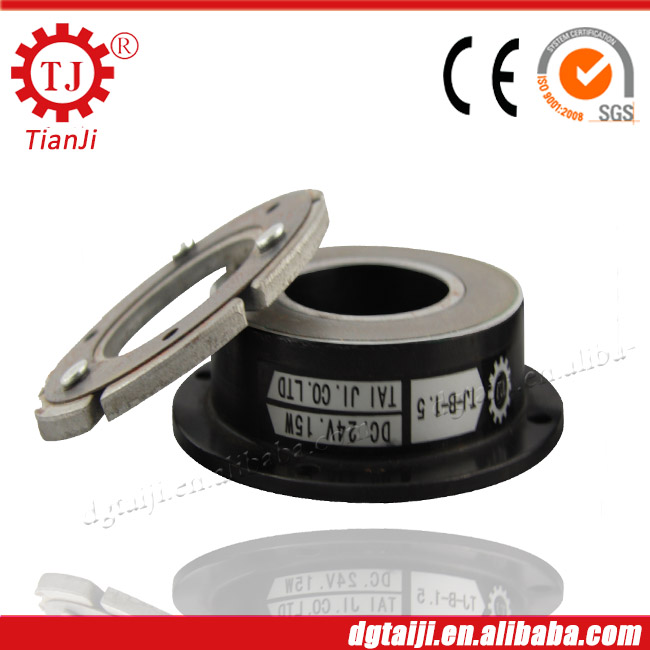

Taiwan Quality Standard Electromagnetic brake for Slitting Machine
Product Description

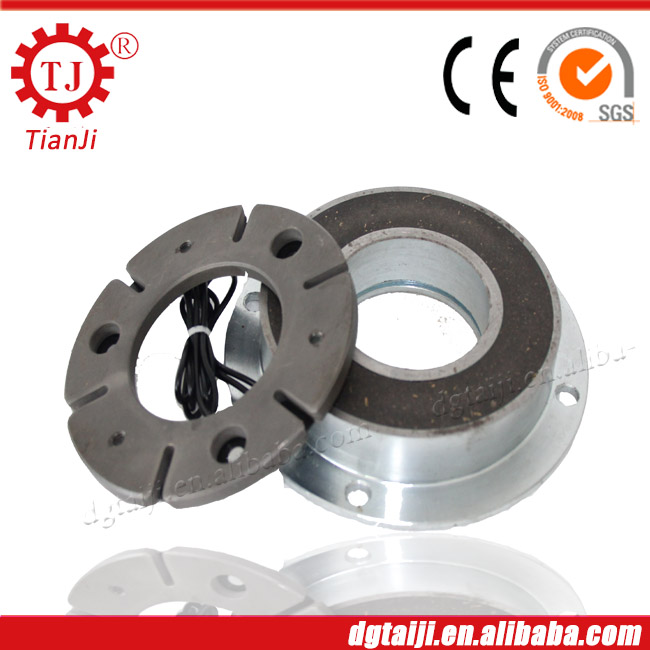

Electro magnetic brake Brief introduction(Dry Single-plate Solenoid Brake)
High quality electro magnetic brakes(also called electro-mechanical brakes or EM brakes) slow or stop motion using electromagnetic force to apply mechanical resistance (friction).
The original name was "electro-mechanical brakes" but over the years the name changed to "hysteresis brakes", referring to their actuation method. Since becoming popular in the mid-20th century especially in trains and trolleys, the variety of applications and brake designs has increased dramatically, but the basic operation remains the same.
Both hysteresis brakes and eddy current brakes use electromagnetic force but hysteresis brakes ultimately depend on friction and eddy current brakes use magnetic force directly.
electromagnetic tooth brake Parameter
| |||||||
| MODEL | TJ-B-0.6 | TJ-B-1.5 | TJ-B-2.5 | TJ-B-5 | TJ-B-10 | TJ-B-20 | TJ-B-40 |
| Static Friction Torque(Nm) | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 |
| Dynamic Friction Torque(Nm) | 5 | 10 | 20 | 40 | 80 | 160 | 320 |
| Power (W) 24V at 20°C | 11 | 15 | 20 | 25 | 35 | 45 | 60 |
| Weight (kg) | 0.28 | 0.5 | 0.91 | 1.68 | 3.15 | 5.9 | 10.5 |
electromagnetic tooth brake Parameter
| |||||||
| MODEL | TJ-B2-0.6 | TJ-B2-1.5 | TJ-B2-2.5 | TJ-B2-5 | TJ-B2-10 | TJ-B2-20 | TJ-B2-40 |
| Static Friction Torque(Nm) | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 |
| Dynamic Friction Torque(Nm) | 5 | 10 | 20 | 40 | 80 | 160 | 320 |
| Power (W) 24V at 20°C | 11 | 15 | 20 | 25 | 35 | 45 | 60 |
| Weight (kg) | 0.32 | 0.5 | 0.9 | 1.97 | 3.45 | 7.1 | 12.2 |

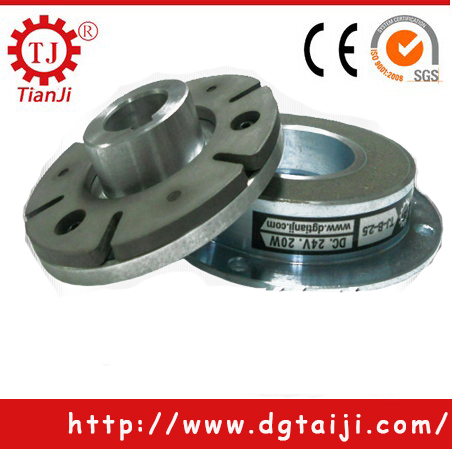

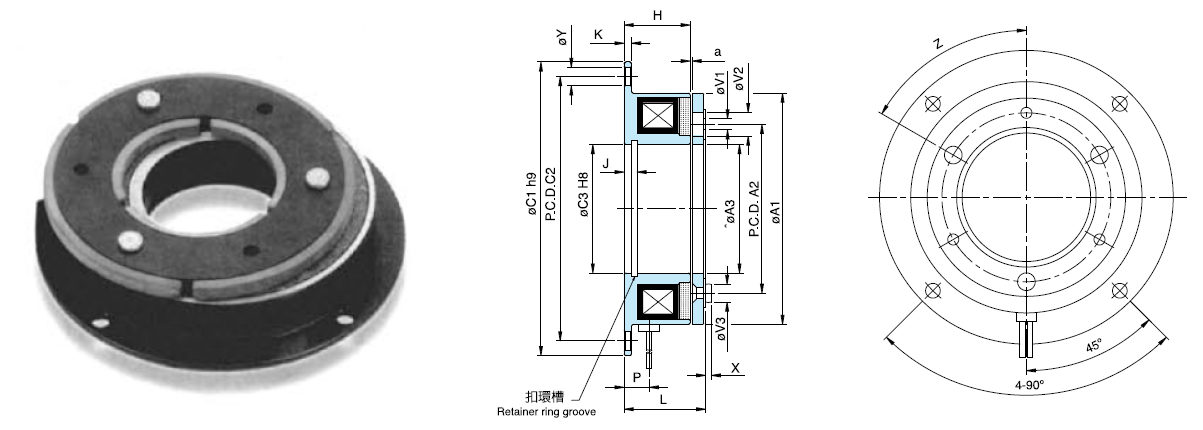

electromagnetic tooth brake Detial
Special features
1. Fast response. Dry design means instant reaction to commands.
2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.
3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.
4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.
5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.
6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications. |
pneumatic clutches Appliation
Main application
1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery.
2. Textile machinery: fiber twisters, treatment machines, weaving machines.
3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines
4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery.
5. Transportation equipment: hoists, feeders, conveyors, rollers, winders.
6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.
|
| Packaging | Usually packing carton filling with plastic foam,packing wooden for big size. |
| Qty/carton | 1pcs |
| carton size | as per the product size |
| Shipping | by sea, by air, or express delivery,such as DHL, FEDEX, UPS... |
More order, More discount!
Provide Cheap & Safe Shipping and Express!
Our Services
Why choose us?
Your choice,we promise.
Five Core strengths
1,The first domestic independent R & D manufacturer and 13 years of professional manufacturing. Processing all adopt Taichung precision machine, CNC machine tool production,"Japan's brothers" machining center. Ensuring that the concentricity is less than 0.01 mm.
2,Casting exquisite, beautiful, practical and durable. The lids adopts aluminum die casting, the surface is smooth, precision, anti-seismic. And the hardness is strong.
3,Complete specifications, cost-effective and spot supply.
4,Independent research and development, special specifications can be customized.
5,Selected materials, high-tech treatment, up to the international standard test.
Company Information

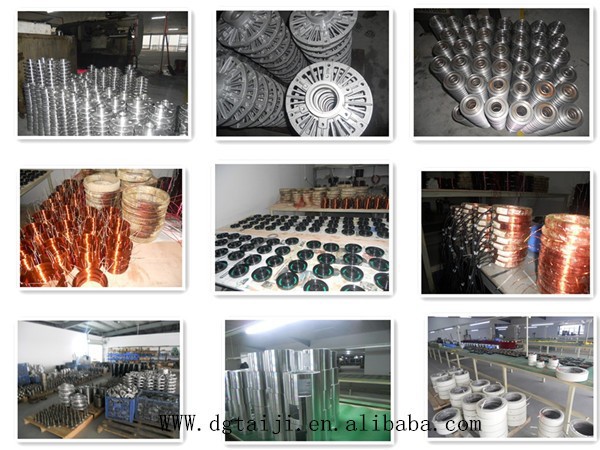

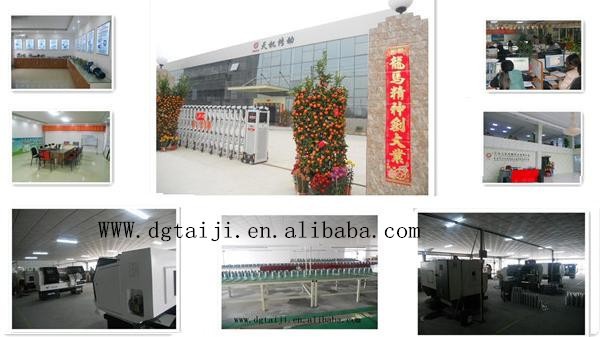

Our factory
