Home > Products Select > Electromagnetic Brake

See larger image

2016 TJ Electromagnetic Friction Clutches and Magnetic Brake
FOB Price: US $ 20 - 250 / Unit
Min.Order Quantity: 1 Unit/Units
Supply Ability: 5000 Unit/Units per Month
Port: shenzhen
Payment Terms: L/C,T/T,Western Union

FOB Price:	US $ 20 - 250 / Unit
Min.Order Quantity:	1 Unit/Units
Supply Ability:	5000 Unit/Units per Month
Port:	shenzhen
Payment Terms:	L/C,T/T,Western Union

Message Leave Messages

Add to Favorites

Share to:

Products Detail

Quick Details

Place of Origin: Guangdong, China(Mainland)
Brand Name: Tianji
Model Number: TJ-B2
Model: TJ-B2-10
Voltage: DC24v
Power: 35w
Static friction torque: 90Nm
Dynamic friction torque: 80Nm
Frequency: 60-100 times/min
Use: Material handling equipments/Food-processing industries
weight: 3.45kg
color: black sliver
manufacturing experience: 9 years

Packaging & Delivery

Packaging Details:	carton box or according to customers' requirement
Delivery Detail:	within 15 days after receive deposit

2016 TJ electromagnetic friction clutches and brakes,electromagnetic brake

Taiwan Brand-Tianji

Reliable Quality,Reasonable Price and Good Service.

Any email will be replied with 24 hours. Thanks for your time!

Skype me(May):tianjicd2012

Product Description

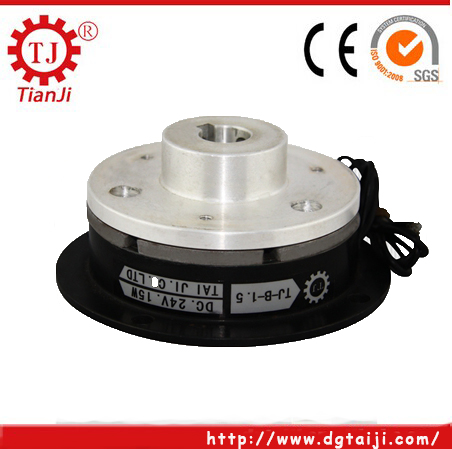

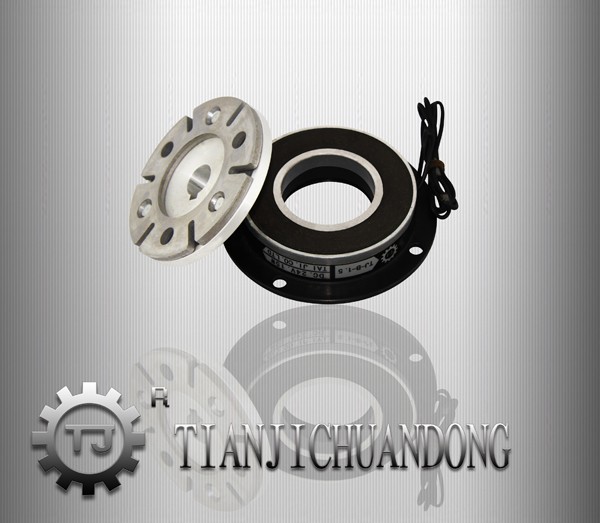

Electromagnetic Brake Brief introduction(Dry Single-plate Solenoid Brake)

High quality electrical brake motor speed reducers (also called electro-mechanical brakes or EM brakes) slow or stop motion using electromagnetic force to apply mechanical resistance (friction).

The original name was "electro-mechanical brakes" but over the years the name changed to "electrical brake motor speed reducers", referring to their actuation method. Since becoming popular in the mid-20th century especially in trains and trolleys, the variety of applications and brake designs has increased dramatically, but the basic operation remains the same.

Both electrical brake motor speed reducers and eddy current brakes use electromagnetic force but electrical brake motor speed reducers ultimately depend on friction and eddy current brakes use magnetic force directly.

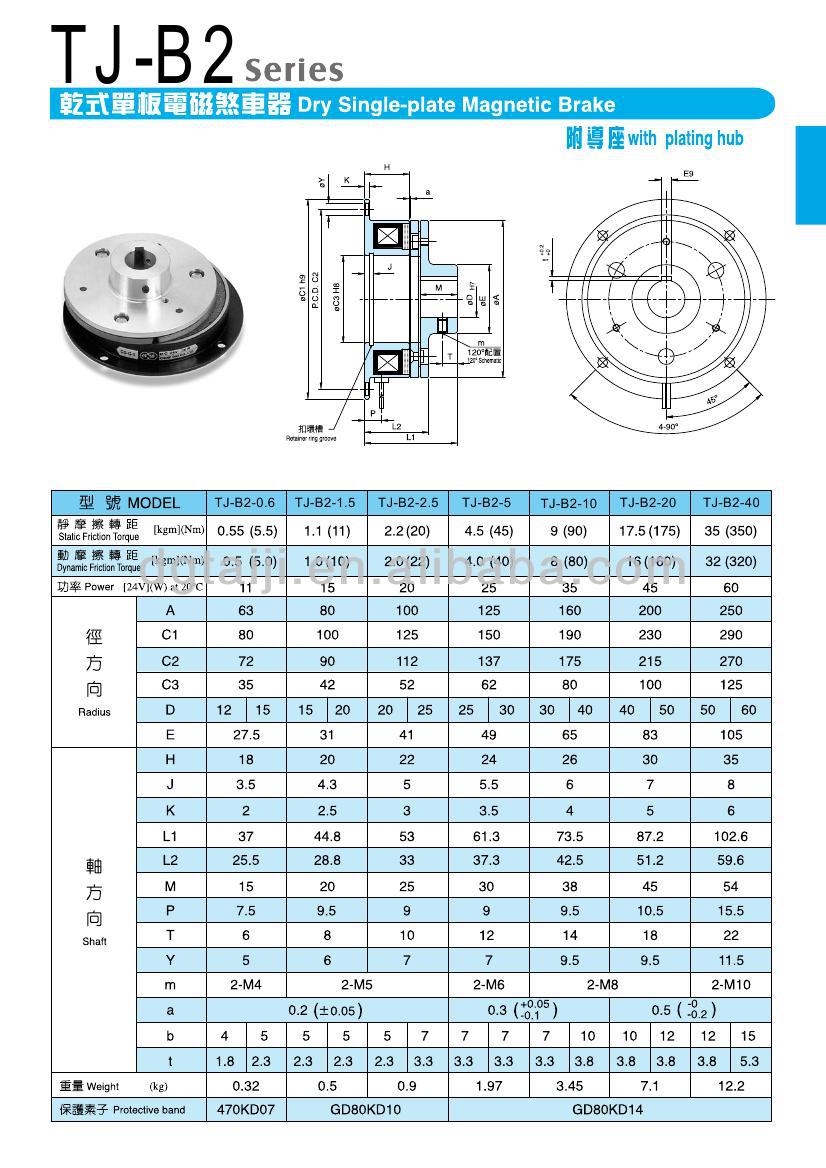

Parameter
MODEL	TJ-B2-0.6	TJ-B2-1.5	TJ-B2-2.5	TJ-B2-5	TJ-B2-10	TJ-B2-20	TJ-B2-40
Static Friction Torque(Nm)	5.5	11	22	45	90	175	350
Dynamic Friction Torque(Nm)	5	10	20	40	80	160	320
Power (W) 24V at 20°C	11	15	20	25	35	45	60
Weight (kg)	0.32	0.5	0.9	1.97	3.45	7.1	12.2

Electromagnetic Brake Detial Special features 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

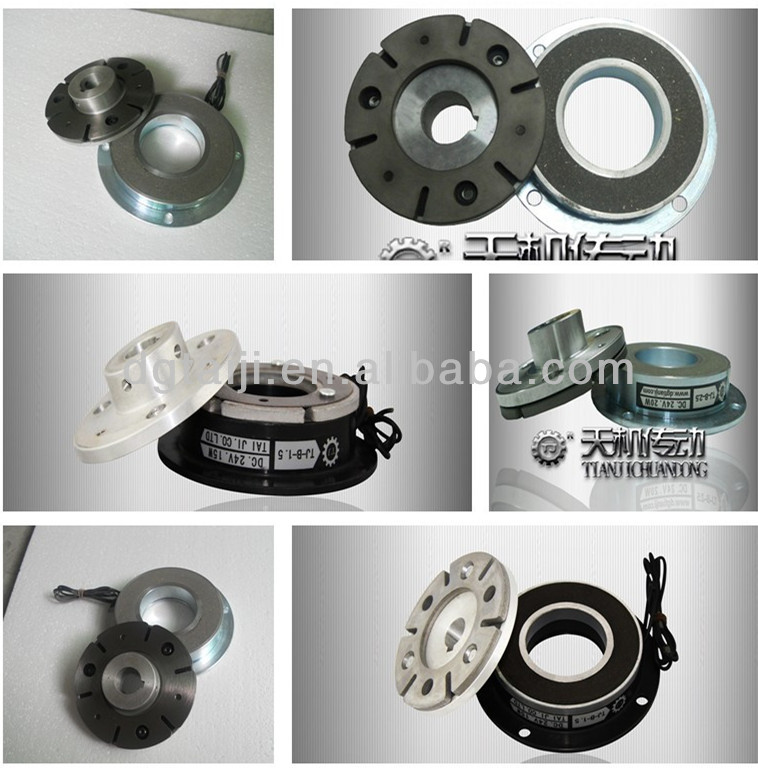

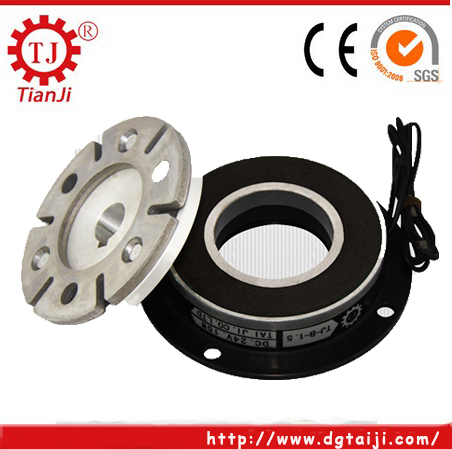

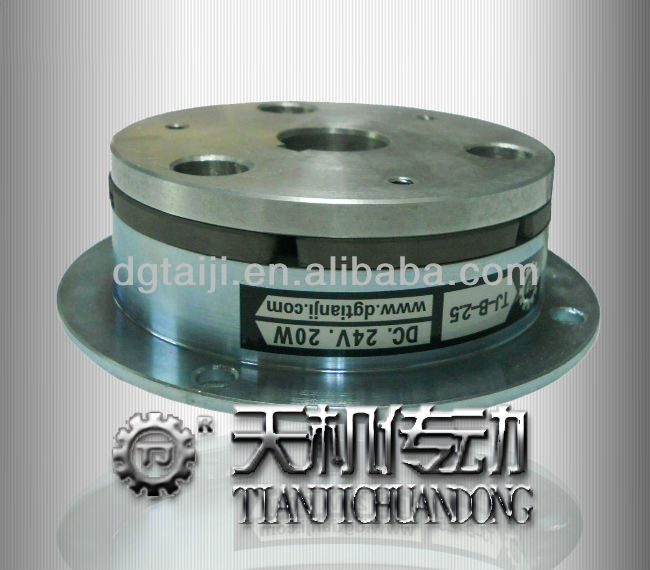

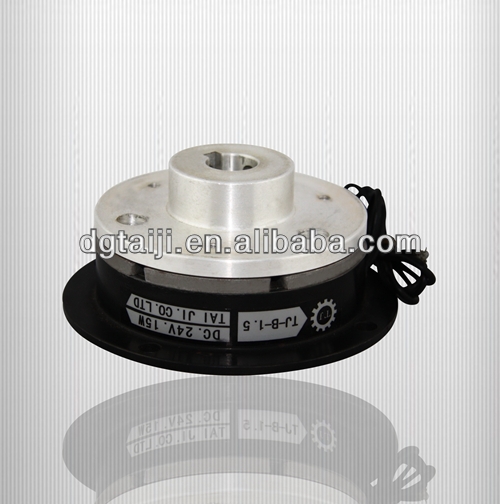

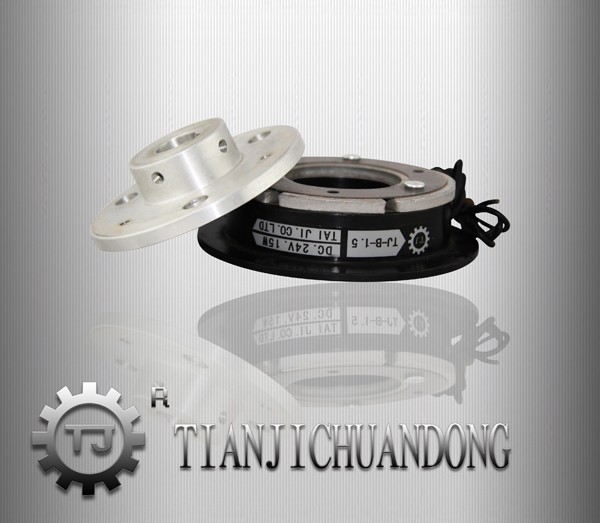

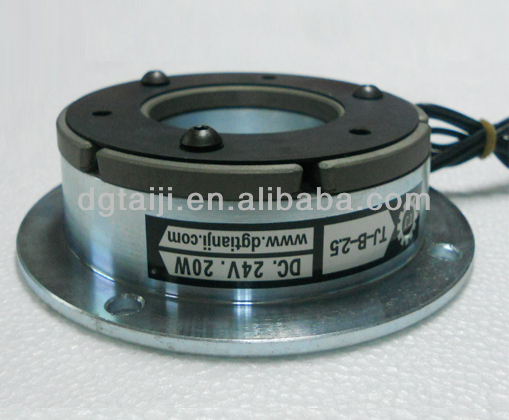

Electromagnetic Brake Detial

TJ-B2

electrical brake motor speed reducer 7

Special features

1. Fast response. Dry design means instant reaction to commands.

2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.

3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.

4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.

5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.

6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Clik me♦

TJ-B	TJ-B1

Electromagnetic Brake Appliation Main application 1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery. 2. Textile machinery: fiber twisters, treatment machines, weaving machines. 3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines 4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery. 5. Transportation equipment: hoists, feeders, conveyors, rollers, winders. 6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines. Usage: Connection,disconnection,speed variation, eversible transmission ,positioning slight movement, overload protection etc.

Electromagnetic Brake Appliation

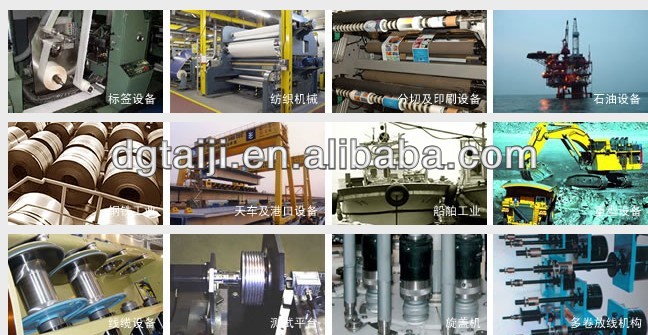

Main application

1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery.

2. Textile machinery: fiber twisters, treatment machines, weaving machines.

3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines

4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery.

5. Transportation equipment: hoists, feeders, conveyors, rollers, winders.

6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.

Usage: Connection,disconnection,speed variation, eversible transmission ,positioning slight movement, overload protection etc.

Packaging & Shipping

High speed solenoid Industrial centrifugal clutch slip clutch

Our Services

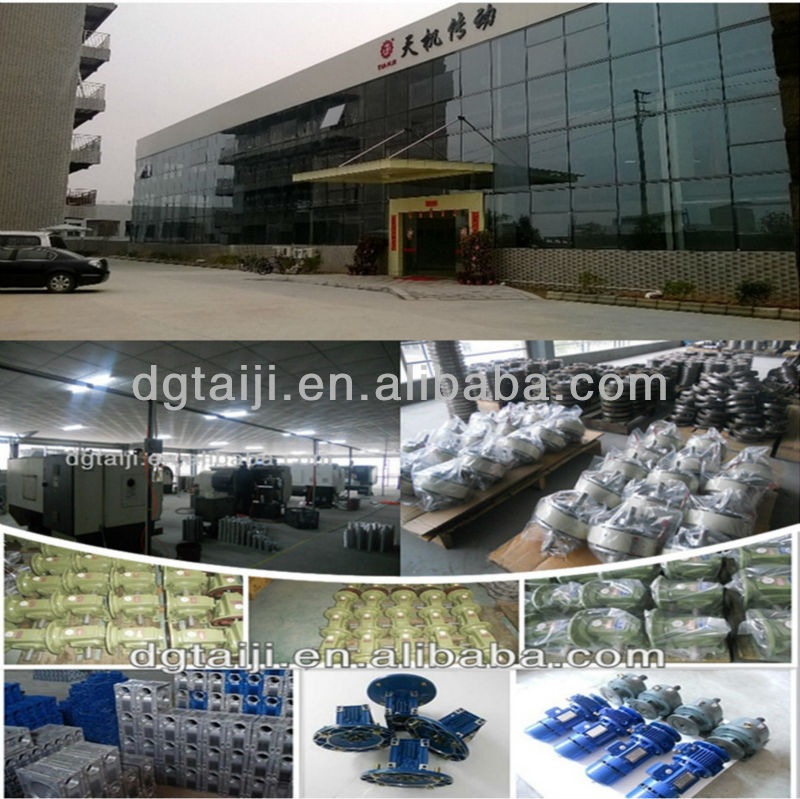

Why choose us?

Your choice,we promise.

Five Core strengths

1,The first domestic independent R & D manufacturer and 13 years of professional manufacturing. Processing all adopt Taichung precision machine, CNC machine tool production,"Japan's brothers" machining center. Ensuring that the concentricity is less than 0.01 mm.

2,Casting exquisite, beautiful, practical and durable. The lids adopts aluminum die casting, the surface is smooth, precision, anti-seismic. And the hardness is strong.

3,Complete specifications, cost-effective and spot supply.

4,Independent research and development, special specifications can be customized.

5,Selected materials, high-tech treatment, up to the international standard test.
